DAHUA

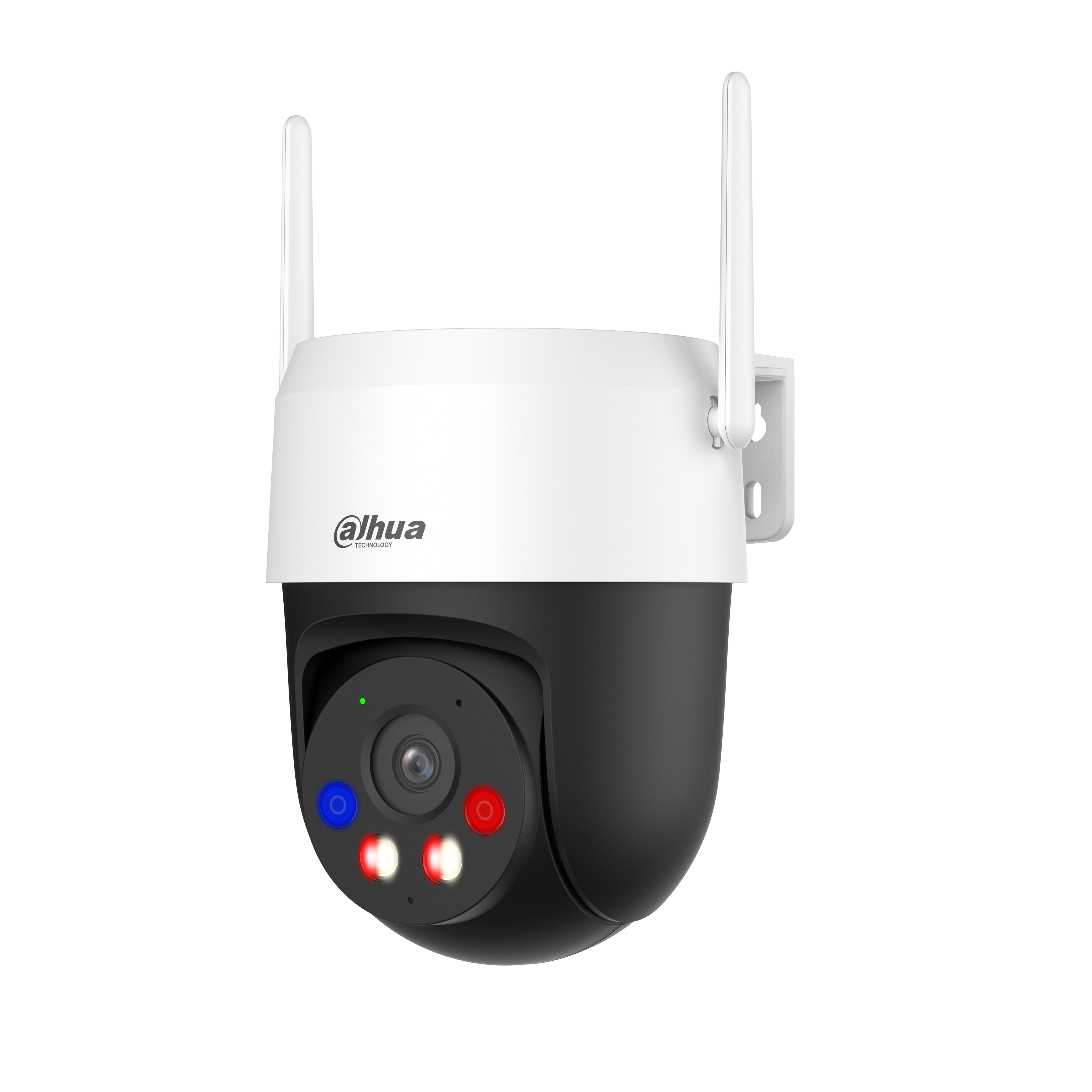

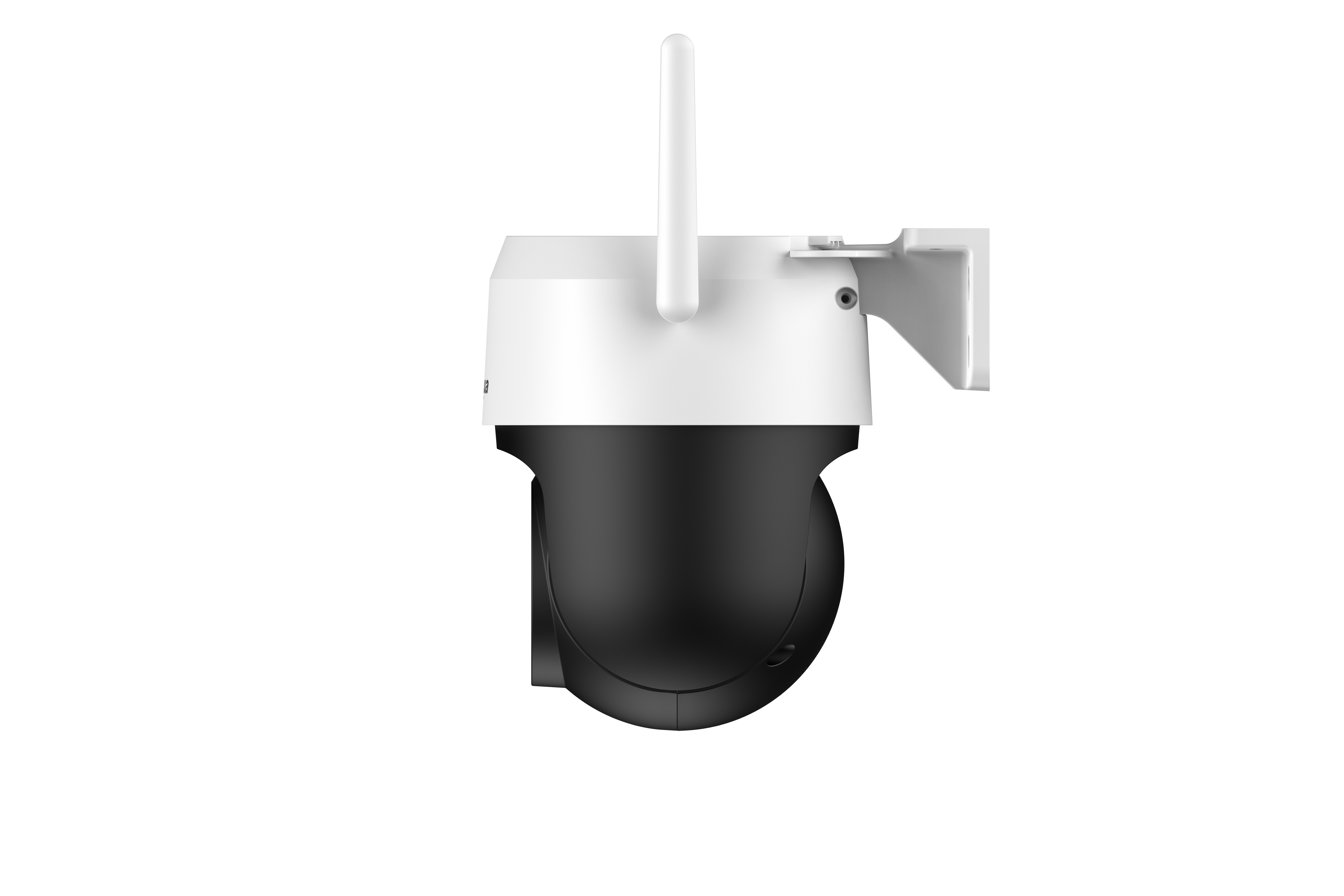

PICOO A2 3MP (DH-P3AS-PV)

Name: PICOO A2 3MP (DH-P3AS-PV)
Brand: DAHUA
Price: 12500.00 PKR
Availability: InStock

Rs.12,500.00 Rs.15,000.00

Save Rs.2,500.00

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. Additionally, it includes smart dual illuminators that not only reduce light pollution, but also intelligently turn on when they are triggered by an event to assist the camera with capturing clear, full-color videos.

Quantity:

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0° to 345°
Tilt: 0° to 90°
Rotation: 0° to 345°

Lens Type

Fixed-focal

Focal Length

4.0 mm

Max. Aperture

F2.0

Field of View

H: 83°; V: 45°; D: 98°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Video Frame Rate

Main stream: 2304 × 1296@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 32 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE)

Wi-Fi Pairing

Bluetooth pairing

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

Storage

Micro SD card (support max. 256 GB)

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

Android;iOS

Function

Abnormal Sound Alarm

Yes

General

Certifications

Power Supply

12 VDC (±30%)

Power Consumption

Basic: 1.8 W (12 VDC)
Max.: 13.8 W (12 VDC) (illuminator intensity + red and blue active deterrence + speaker on + PT rotation + Wi-Fi pulling stream + WDR)

Operating Temperature

–30 °C to +55 °C (–22 °F to +122 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP66

Camera Button

Reset button

Casing Material

Plastic

Product Dimensions

125.4 mm × 110 mm × 140.3 mm (4.94" × 4.37" × 5.52") (L × W × H)

Net Weight

0.4 kg (0.88 lb)
